Let's Do Something Cool with Color





Script-Side ColorMix – Subcategory Color Assignments

This exercise came from something I did for my personal use, but I think the principal can be applied to business cases as well.  You can download the example here.

I have long used the ColorMix wizard in QlikView for heat map charts.  Using this function QlikView can assign colors to values in your chart based on its position in the range of all values.  This is an immediately apparent use-case but I wanted to do something a little different.

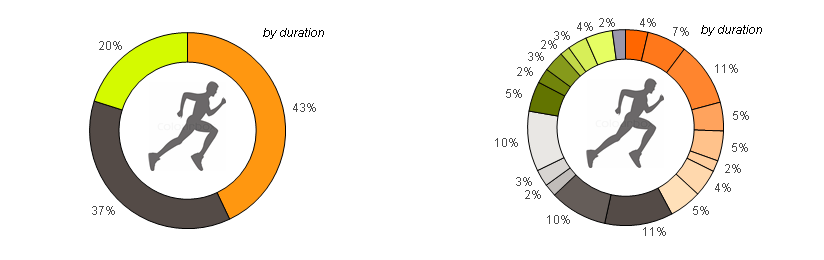

I have a regular fitness program where I mix up different types of activities throughout the week.  In addition to the main activities, I want to be able to visually separate sub activities from each other while still maintaining them as activity groups.  Here are screen shots of the Activity and the Activity SubClass broken out to show you what I mean:



Left - By Activity                                Right - By Activity SubClass



So my P90X programs will always be some shade of gray.  My Insanity programs will all be some shade of Orange, etc.  The front-side ColorMix function is great, but it would be very difficult to assign these in the front-end especially considering the grouped dimension and varying numbers of SubClass groups as time goes on.

The idea is that when only the Activities are shown, I want to explicitly assign the main colors.  But when we break these out into Activity SubClass, I want to dynamically assign a shade of that Activity color to each of the Activity SubClass values within it.  I realized quickly that the best way to do this was to utilize ColorMix in the script.

The first step is to decide what colors should be assigned to each category.  Create a spreadsheet and give each Activity an RGB value.  You must also decide what will be the range of colors that will be used to create the Activity SubClass colors.  In this case, the Activity list will need to be maintained, but the SubClass values can vary because the actual RGB values for each distinct SubClass will be assigned at reload time.



	Activity Color			Top Color			Low Color
Activity	R	G	B	RH	GH	BH	RL	GL	BL
Insanity	255	151	16	255	102	0	255	224	185
P90X	84	75	71	84	75	71	233	231	228
Hiking	212	250	0	98	116	0	230	254	99
Running	34	84	158	34	84	158	118	154	207
Biking	130	27	159	130	27	159	186	112	207
Elliptical	255	79	79	255	79	79	255	79	79



Next you must create the script that will load these up and create the structure that will facilitate the ColorMix operation.

Create a table with the distinct Activity SubClasses creating a key.

//  load distinct keys
TempColorMix:
load distinct ActivityKey, Activity as Act, [Activity SubClass] as ActSub, ActSubSort
resident ActivityLog
where not isnull(ActivityKey)
order by ActSubSort;



Create a counter row that resets for each major Activity.

//  add the subrow row numbers for each activity
//  must be done in separate step due to ordering and distinct features.
Temp2ColorMix:
load ActivityKey, Act, ActSub,
if(Act<>peek('Act'),1,peek('SubRow')+1) as SubRow
resident TempColorMix
order by ActSubSort;
drop table TempColorMix;



Now find the low and high value for each activity.  This will give the ColorMix function the ranges to create colors for.

//  find the max and min row number for each activity
left join (Temp2ColorMix)
load min(SubRow) as SubMin, max(SubRow) as SubMax, Act
resident Temp2ColorMix
group by Act;

Add in the actual color ranges we had set up in the spreadsheet.

//  join in the guide colors
left join (Temp2ColorMix)
LOAD Activity as Act,
     argb(255,R,G,B) as ColorAct,
     RH, GH, BH,
     RL, GL, BL
FROM Data\Workouts.xlsx(ooxml, embedded labels, header is 1 lines, table is ColorMix);



Note that you can use a standard color dispersion or an enhanced color dispersion that results in a more distinguishable set of colors.  I put both examples in the sample script and just commented out the standard one.

//  now we can get the color for each Activity SubClass and create final table
ColorMix:
load ActivityKey, ColorAct,
    //if(SubMax=1,ColorAct,colormix1((SubRow-SubMin)/(SubMax-SubMin),rgb(RH,GH,BH),rgb(RL,GL,BL))) as ColorSub //  standard color dispersion
    if(SubMax=1,ColorAct,colormix1((1+sign(2*(SubRow-SubMin)/(SubMax-SubMin)-1)*sqrt(fabs((2*(SubRow-SubMin)/(SubMax-SubMin)-1))))/2,rgb(RH,GH,BH),rgb(RL,GL,BL))) as ColorSub //  enhanced color dispersion (less collision in the middle spectrum)
resident Temp2ColorMix
order by Act, ActSub;
drop table Temp2ColorMix;



After reloading, we can focus on visualization. Create a variable expression to assign our colors.  We used $(vColorPick).



if(getcurrentfield(ActivityGroup)='Activity',ColorAct,
   if(count(distinct [Activity SubClass])=1,ColorSub,rgb(154,151,170)))

This variable can be called in the Background Color attribute for the expression in any chart.  If you need help with Background Colors in Expression Attributes reference this article.  We added an else statement to take care of any values we neglected to assign in our spreadsheet.

So hopefully this has value for you.  I have posted the spreadsheet and qvw here.  Feel free to use it to learn more about this method OR obviously you could use it to keep your own workout log.

Is this valuable to you?  Then please share.
Do you see other use cases or a better way to do this?  Then please comment.
